M20 threaded butt type waterproof connector male pin female

CB-M20-MDM01

* M20 threaded butt type waterproof connector male pin female
* Field assemble
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2 / 3/ 4/ 2+2
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 300V
* Rated Current: 24A
* Cable Jacket OD: 5.5-11.5 mm2
* Wire Installation: Quick Lock
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

Quantity:

Contact Now

M20 threaded butt type waterproof connector male pin female

Our M20 threaded butt type 6 pin connector types with male pin and female socket is a reliable and sturdy solution for outdoor connections. M20 threaded butt 6 pin connector types male pin female is made of high-quality materials that can withstand harsh environmental conditions and resist corrosion. Its tight seal prevents water and dust from damaging the electrical system, ensuring safe and reliable performance. The M20 threaded butt type 6 pin connector types male pin female are easy to install and are widely used in outdoor lighting, electric power, communication, and other industries. They solve the issues of poor connection, corrosion, and damage caused by environmental factors, prolonging the lifespan of the electrical system.

M20 threaded butt type 6 pin connector types male pin female Parameter Description

Pins Number	2Pins	3Pins	4Pins	2+2Pins
Rated Voltage	500V	500V	500V	500V
Rated Current	25A	25A	25A	25A+8A
DC 2mA60S Insulation Voltage	3KV	3KV	3KV	3KV
DC 500V Insulatin resistance	200Ω	200Ω	200Ω	200Ω
IP- Code	IP67	P67	IP67	IP67
Cable Specifications	≤2.5mm2	≤2.5mm2	≤2.5mm2	≤2.5mm2
Assembly Cable Diameter	5.5-11.5mm2	5.5-11.5mm2	5.5-11.5mm2	5.5-11.5mm2

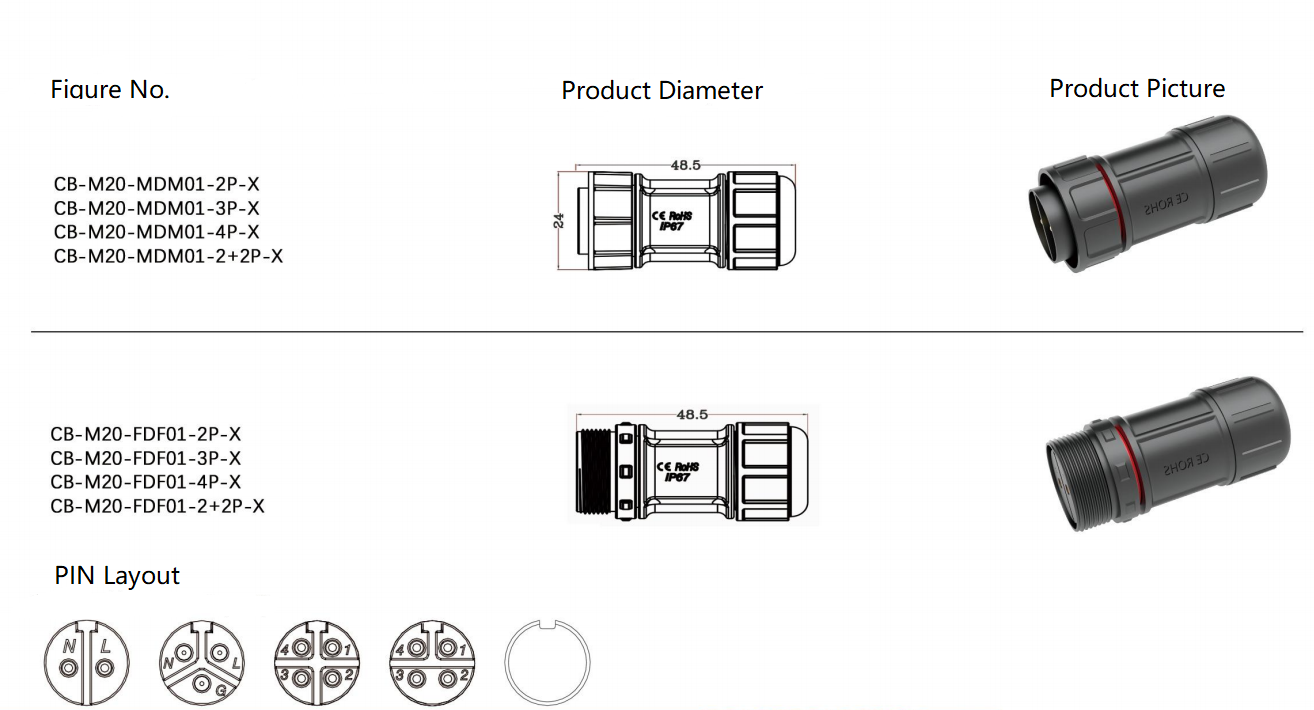

M20 threaded butt 6 pin connector types male pin female Drawing

6 pin connector types
