M20 Quick Lock through single-head wire waterproof connector

CB-M20-FLF11-20

* Quick Lock through single-head wire waterproof connector
* Through Single- head with Wire cable
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2 pin
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 300V
* Rated Current: 24A
* Cable Jacket OD: 5.0-9mm,9-12mm
* Wire Installation: Quick Lock
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

Quantity:

Contact Now

M20 Quick Lock through single-head wire waterproof connector Specification

The M20 Quick Lock through single-head female to female plug connector is the perfect solution for those looking for a secure and easy-to-use connector. With quick locking capabilities, this connector allows for a quick and stress-free installation process. Additionally, the waterproof design ensures safe connections in even the most harsh environments. The M20 female to female plug connector can be used in a variety of scenarios, such as outdoor lighting fixtures, control panels, and more. This product saves time and money by eliminating the need for expensive and time-consuming wire splicing or taping. With its high quality construction and reliable performance, the M20 Quick Lock is the perfect choice for any electrical project that requires quick and secure connections.

M20 Quick Lock through single-head female to female plug connector Parameter Description

Numbers of Poles	2/3Pins
Rated Voltage	450V
Rated Current	16A
Wire Section	0.5-2.5mm2
Out Cable Diameter	5-9mm, 9-12mm
Temperature Range	-40℃- 105℃
IP Code	IP68
Housing Materials	PA66

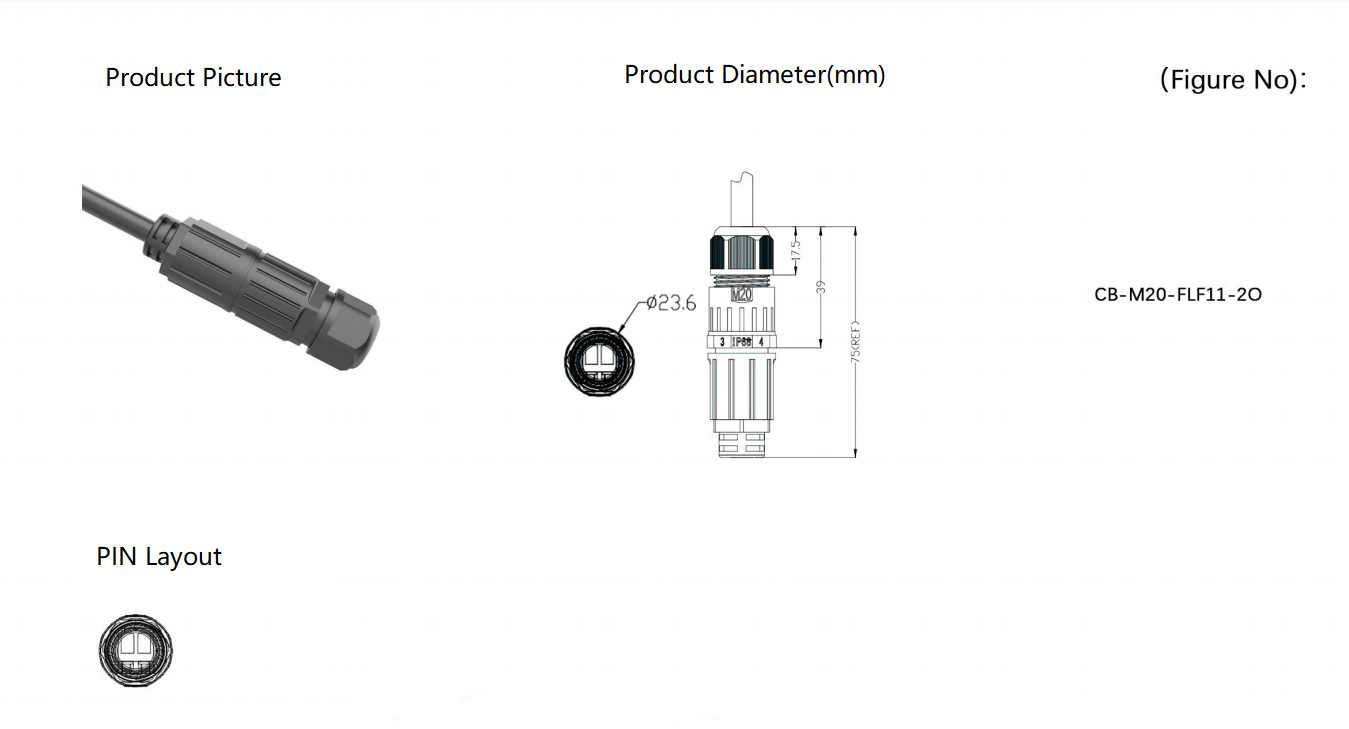

M20 Quick Lock through single-head female to female plug connector Drawing Details
