M20 Quick card through double head waterproof connector 2Pins

CB-M20-FLF01-20

* Quick card through double head waterproof connector 2pins
* Through double head
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2 pin
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 300V
* Rated Current: 24A
* Cable Jacket OD: 5.0-9mm,9-12mm
* Wire Installation: Quick Lock
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

Quantity:

Contact Now

M20 Quick card through double head waterproof connector 2Pins Specification

The wire harness connector types M20 Quick Card Through Double Head Waterproof Connector 2Pins allows for quick and easy card insertion with its double head design. The waterproof feature ensures safety in various environments. This product can be used for outdoor LED lightings, CCTV camera installations, and other electronic devices. With its reliable performance and extensive applications, users can solve the issue of difficult and time-consuming card insertion..
The wire harness connector types M20 Quick Card Through Double Head Waterproof Connector 2Pins are available in various designs and variants. In addition, we offer a wide range of accessories to enable Cablein screwless series of quick-wire connectors to be used in a wide variety of applications.

Wire harness connector types M20 Quick card through double head waterproof connector 2Pins Parameter Description

Numbers of Poles	2Pins
Rated Voltage	450V
Rated Current	24A
Wire Section	0.5-2.5mm2
Out Cable Diameter	5-9mm, 9-12mm
Temperature Range	-40℃- 105℃
IP Code	IP68
Housing Materials	PA66

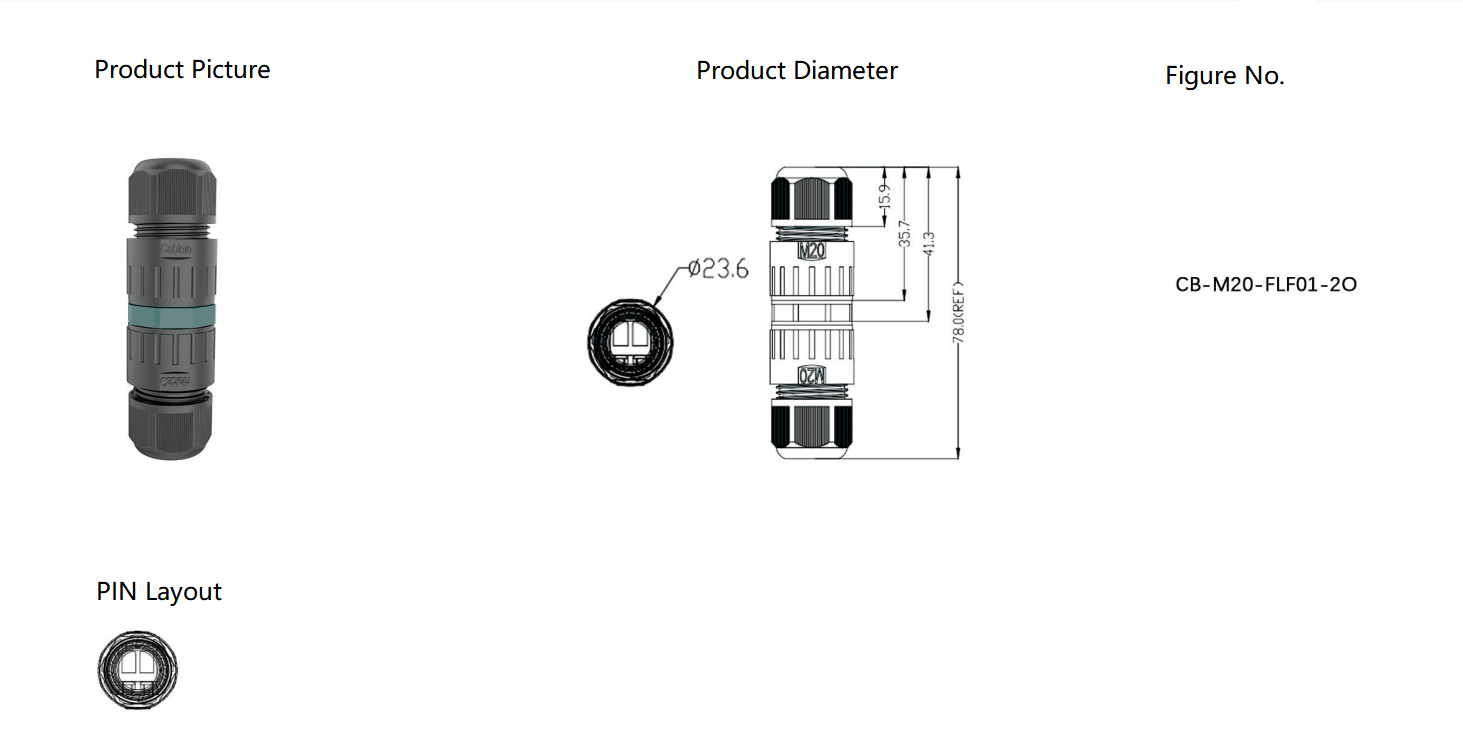

Wire harness connector types M20 Quick card through double head waterproof connector 2Pins Drawing Details
