M25 Assembled threaded butt joint waterproof connector
* Assembled Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5Pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 30A
* Cable Jacket OD: 6-14mm
* Wire Installation: Assembled Threaded
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
M25 Assembled threaded butt joint waterproof connector
This is waterproof twist connectors , which is waterproof rating IP67. In the outdoor typical applications, the waterproof twist connectors might be exposed to the rain, underground water, dust and other harsh environments. So that the waterproof twist connectors with favorable waterproof rating are well to deal with these aggressive environments. This waterproof twist connectors are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male connector mating with female connector. In this way, the connector will be favorable waterproof.

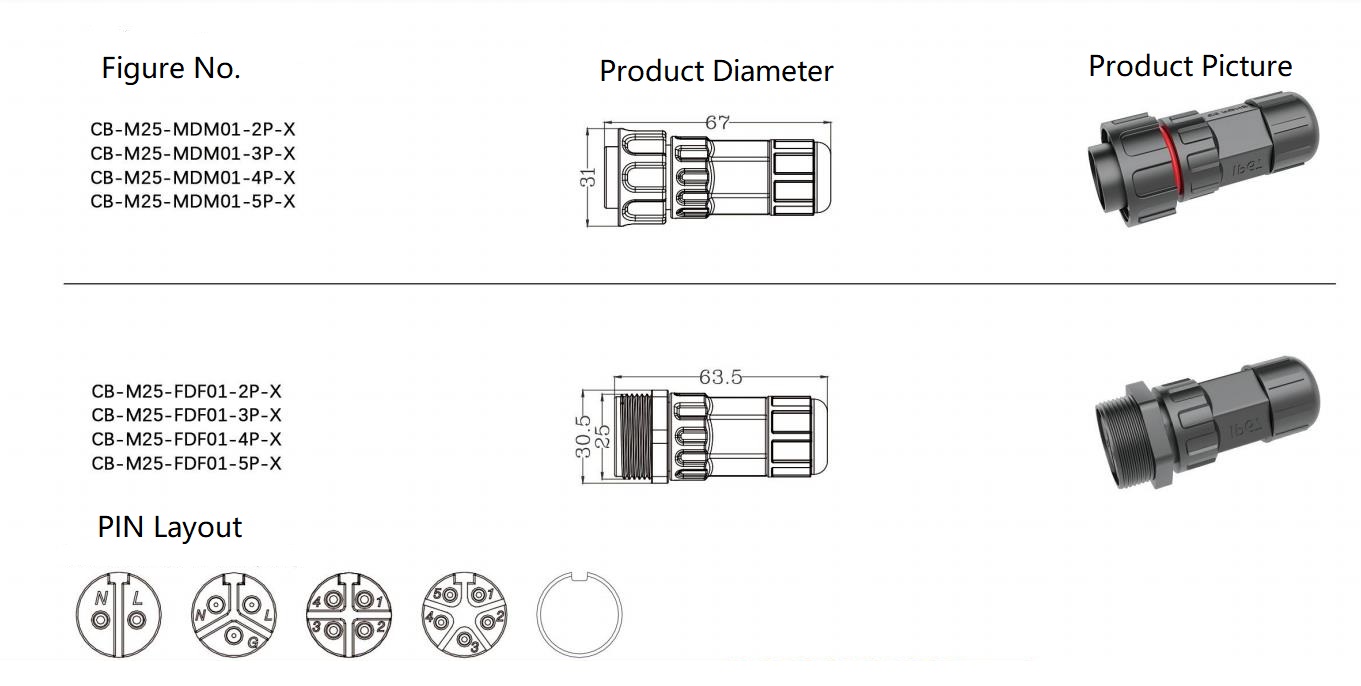

M25 Assembled threaded butt joint waterproof connector Parameter Description
| Pin number | 2Pins | 3Pins | 4Pins | 5Pins |
| Rated Voltage | 500V | 500V | 500V | 500V |
| Rated current | 30A | 30A | 30A | 30A |
| DC 2mA60S Insulation voltage | 3KV | 3KV | 3KV | 3KV |
| DC 500V Insulation resistance | 500MΩ | 500MΩ | 500MΩ | 500MΩ |
| IP-CODE | IP67 | IP67 | IP67 | IP67 |
| Cable specifications | ≤4.0mm2 | ≤4.0mm2 | ≤4.0mm2 | ≤4.0mm2 |
| Molding cable diameter | 6-14mm2 | 6-14mm2 | 6-14mm2 | 6-14mm2 |
