M25 surface type threaded butt type waterproof connector
CB-M25-MDM11
* M25 surface type threaded butt type waterproof connector
* Surface Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5Pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 30A
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
* Surface Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5Pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 30A
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
Quantity:
M25 surface type threaded butt type waterproof connector
The M25 Surface Type Threaded Butt Type waterproof electrical wire is ideal for multiple outdoor applications and harsh environments. It features a unique threaded butt design that provides a strong connection between M25 wires. With weather-resistant properties, this connector offers reliable waterproofing and is perfect for use in marine, automotive, and industrial settings. The waterproof electrical wire also has an easy-to-use design that simplifies installation, reduces maintenance, and saves time. Say goodbye to cable corrosion and water damage problems with our waterproof electrical wire.
M25 surface type threaded butt type waterproof electrical wire Parameter Description
| Pin number | 2Pins | 3Pins | 4Pins | 5Pins |
| Rated Voltage | 500V | 500V | 500V | 500V |
| Rated current | 30A | 30A | 30A | 20A |
| DC 2mA60S Insulation voltage | 3KV | 3KV | 3KV | 3KV |
| DC 500V Insulation resistance | 500MΩ | 500MΩ | 500MΩ | 500MΩ |
| IP-CODE | IP67 | IP67 | IP67 | IP67 |
| Cable specifications | ≤4.0mm2 | ≤4.0mm2 | ≤2.5mm2 | ≤1.5mm2 |

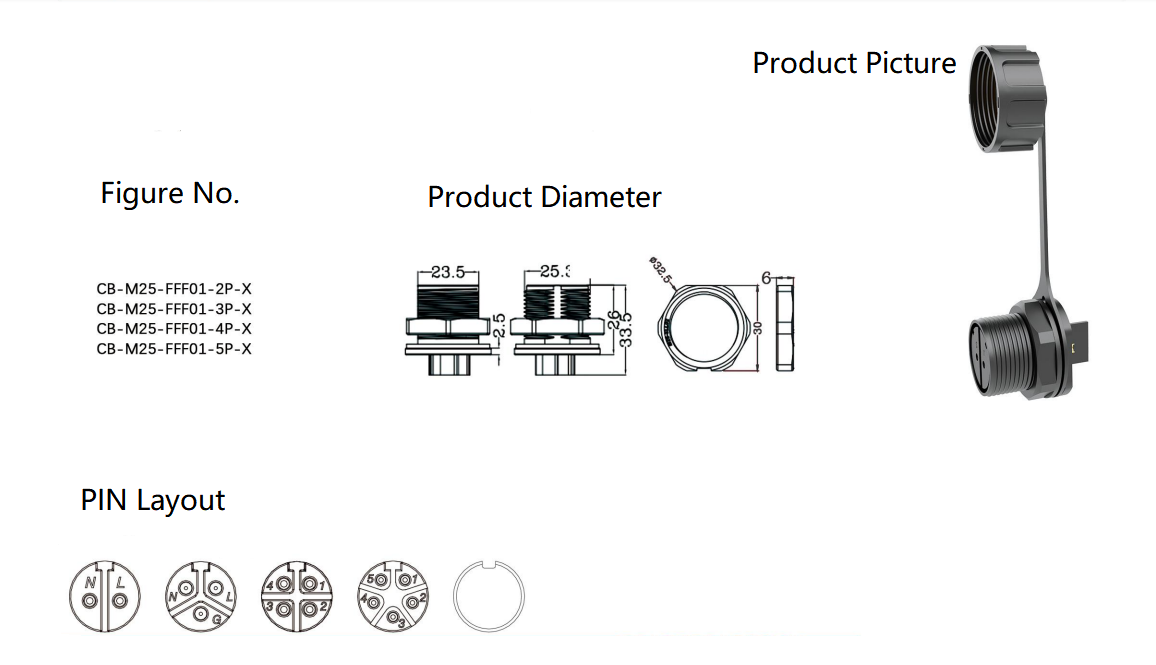

M25 Surface Type Threaded Butt Type Waterproof Connector Drawing
