P25 Panel Type Push-locking waterproof connector for interconnection
* Surface Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 3/3+9 Pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 300V
* Rated Current: 25A
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
P25 Panel Type Push-locking waterproof connector for interconnection
This is connector waterproof , which is waterproof rating IP67. In the outdoor typical applications, the connector waterproof for interconnection might be exposed to the rain, underground water, dust and other harsh environments. So that the waterproof electric wire connectors with favorable waterproof rating are well to deal with these aggressive environments. This electric wire connector waterproof are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male connector mating with female connector. In this way, the connector waterproof will be favorable waterproof.

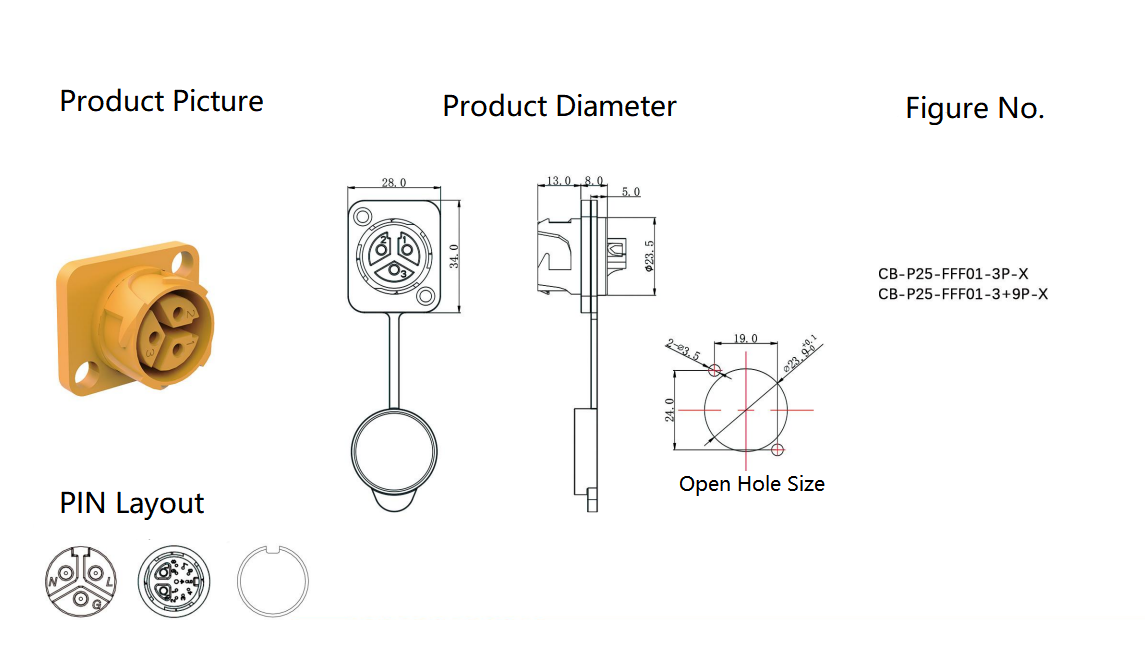

P25 Panel Type Push-locking waterproof connector for interconnection Parameter Description
| Pin number | 3Pins | 3+9Pins |
| Rated Voltage | 300V | 300V |
| Rated current | 25A | 25A |
| DC 2mA60S Insulation voltage | 3KV | 3KV |
| DC 500V Insulation resistance | 100MΩ | 100MΩ |
| IP-CODE | IP67 | IP67 |
| Cable specifications | ≤2.5mm2 | ≤1.5+0.3mm2 |
