M20 Quick Lock T Ttype Three Head waterproof connector 3Pins

CB-M20-FTF01-30

* M20 Quick Lock T type Three Head waterproof connector 3Pins
* T type Three Head waterproof connector
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 3 pin
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 300V
* Rated Current: 24A
* Cable Jacket OD: 5.0-9mm,9-12mm
* Wire Installation: Quick Lock
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

Quantity:

Contact Now

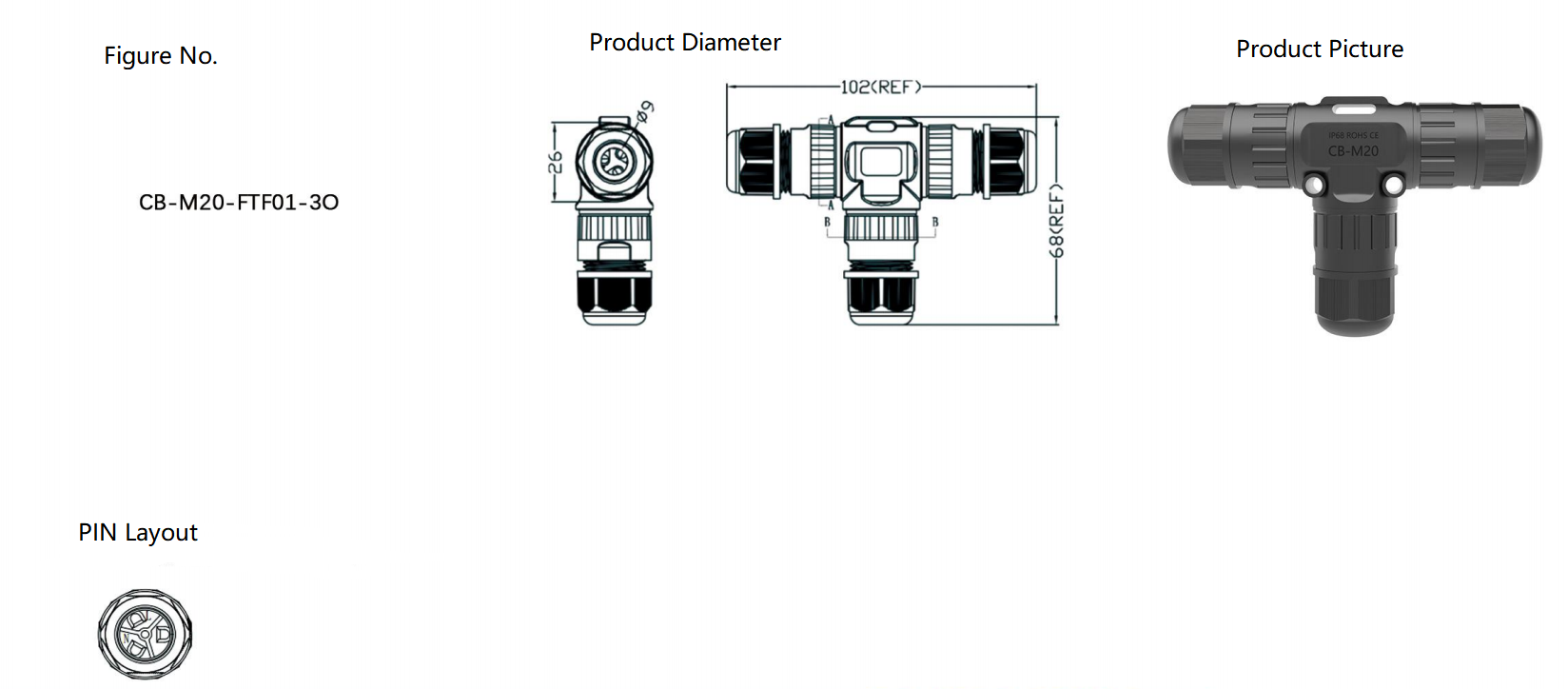

M20 Quick Lock T Ttype Three Head waterproof connector 3Pins Specification

The M20 Quick Lock T Ttype Three Head male and female plug is perfect for use in applications where moisture resistance is critical. It features a quick lock T type male and female plug design that makes it easy to install without the need for special tools. The three heads male and female plug provide a reliable connection that is protected from moisture, making it ideal for use in outdoor environments. In addition, this waterproof connector has excellent corrosion resistance, making it suitable for use in harsh environments. With a compact and robust design, this connector can be used in a variety of applications, including lighting, marine, and outdoor electronics. Whether you are looking for a reliable connection for your outdoor lighting fixtures or need a waterproof connector for your marine electronics, M20 Quick Lock T Ttype Three Head male and female plug has you covered.

M20 Quick Lock T Ttype Three Head male and female plug Parameter Description

Numbers of Poles	3 Pins
Rated Voltage	450V
Rated Current	24A
Wire Section	0.5-2.5mm2
Out Cable Diameter	5-9mm, 9-12mm
Temperature Range	-40℃- 105℃
IP Code	IP68
Housing Materials	PA66

M20 Quick Lock T Ttype Three Head waterproof connector 3Pins Parameter Description
