M20 threaded butt type waterproof connector male pin end
* Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2 / 3/ 4/2+2Pins/5 Pins/2+3Pins/7Pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 25A
* Wire Installation: Butt Type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
M20 threaded butt type waterproof connector male pin end
Our M20 threaded butt type cable wire connectors male pin end boasts superior quality and durability, capable of withstanding even the harshest environments. With its waterproof design, it is perfect for outdoor applications in wet conditions. TheM20 threaded butt type cable wire connectors male pin end threading ensures a secure and stable connection, while the male pin end allows for easy and reliable conductivity. Ideal for industrial machinery, electromagnetic interference-sensitive equipment, and outdoor lighting systems, this cable wire connectors solves any potential connectivity issues in outdoor and harsh environments with ease. Trust in our product for a reliable and long-lasting connection every time.

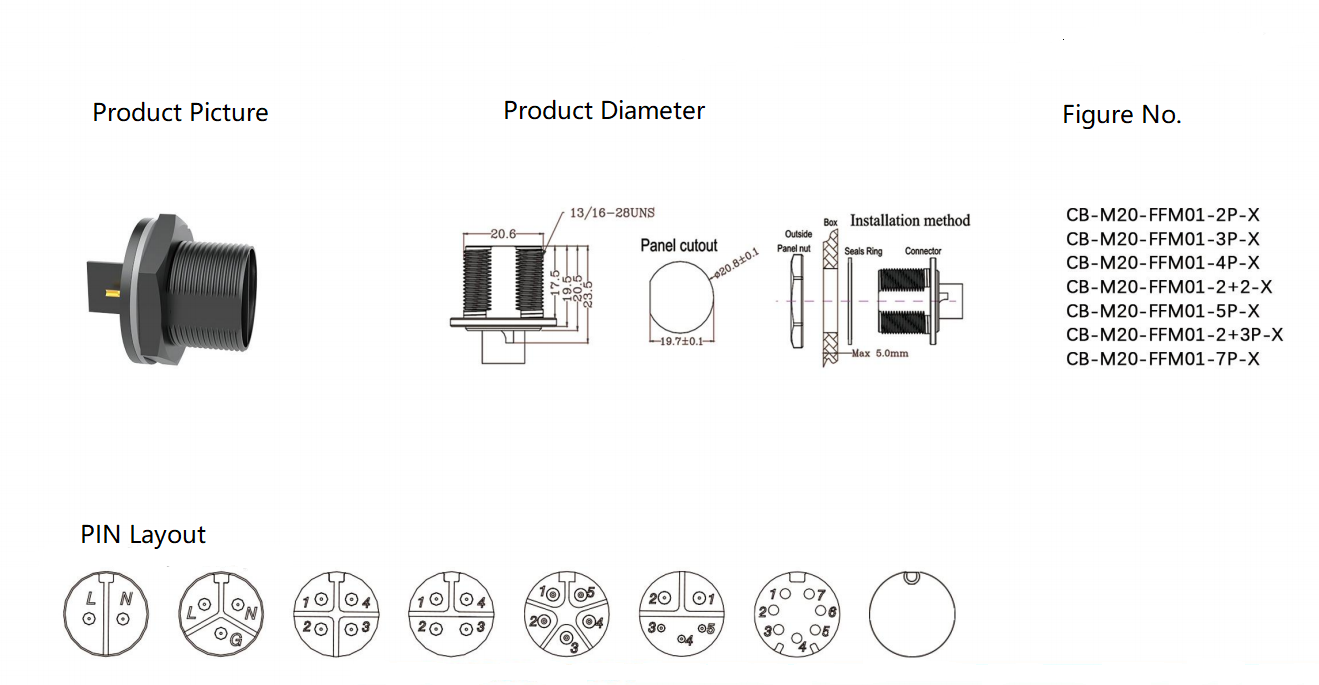

M20 threaded butt type cable wire connectors male pin end
| Pin Number | 2Pins | 3Pins | 4Pins | 2+2Pins | 5Pins | 2+3Pins | 7Pins |
| Rated Voltage | 500V | 500V | 500V | 500V | 500V | 300V | 300V |
| Rated Current | 25A | 25A | 25A | 25A+8A | 20A | 25A+8A | 20A |
| DC 2mA60S Insulation Voltage | 3KV | 3KV | 3KV | 3KV | 3KV | 3KV | 3KV |
| DC500V Insulation Resistance | 200Ω | 200Ω | 200Ω | 200Ω | 200Ω | 200Ω | 200Ω |
| IP Code | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Cable specifications | ≤2.5mm2 | ≤2.5mm2 | ≤2.0mm2 | ≤2.5+0.3mm2 | ≤0.3mm2 | ≤2.5+0.3mm2 | ≤0.3mm2 |
