M20 threaded to waterproof connector female end
* Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2 / 3/ 4/2+2Pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 25A
* Wire Installation: Butt Type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
M20 threaded to waterproof connector female end
Our M20 threaded cable wire connector female end is designed to provide a secure and reliable connection in demanding environments. With its rugged construction and IP68 rating, it can withstand harsh conditions such as dust, water, and vibration. The cable wire connector is made of high-quality materials, ensuring long-lasting performance and durability. It is easy to install and connects quickly, making it ideal for use in a wide range of applications such as industrial equipment, marine electronics, and automotive systems. With our M20 threaded cable wire connector female end, you can have peace of mind knowing that your connections are secure and reliable.

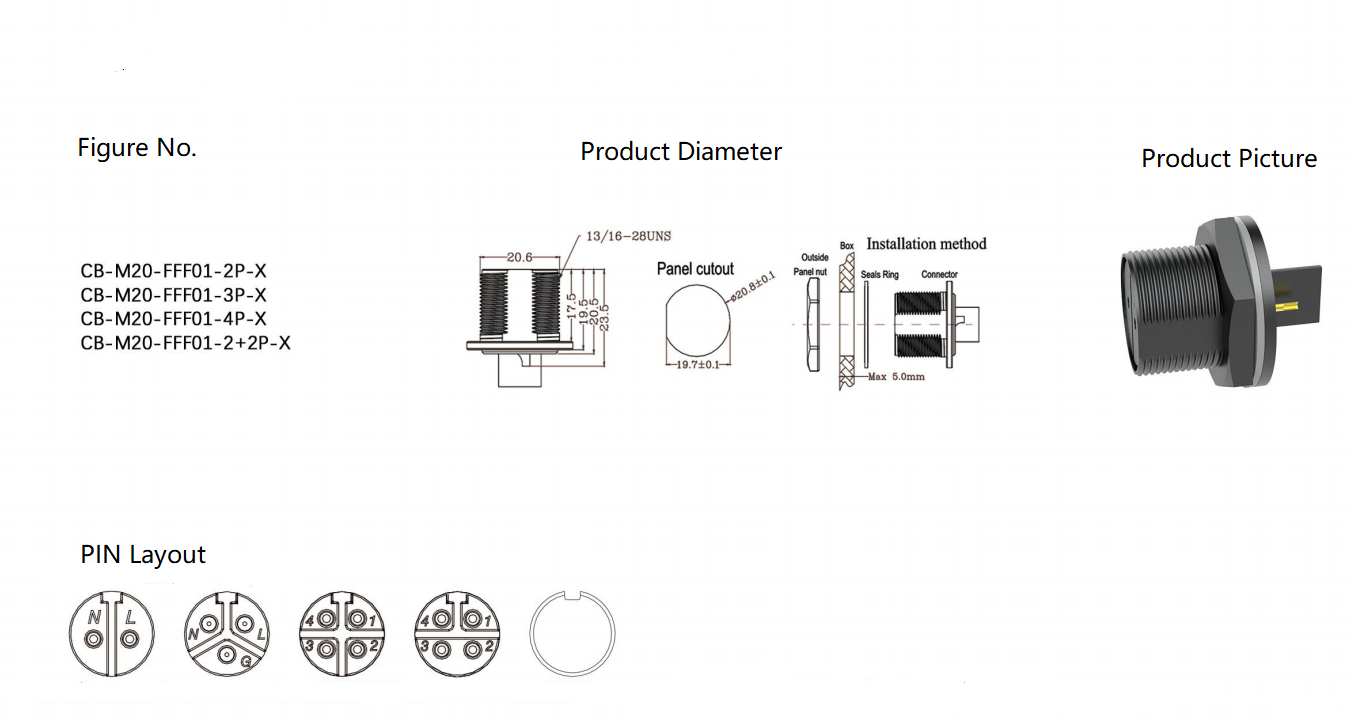

M20 threaded cable wire connector female end
| Pin Number | 2Pins | 3Pins | 4Pins | 2+2Pins |
| Rated Voltage | 500V | 500V | 500V | 500V |
| Rated Current | 25A | 25A | 25A | 25A+8A |
| DC 2mA60S Insulation Voltage | 3KV | 3KV | 3KV | 3KV |
| DC500V Insulation Resistance | 200Ω | 200Ω | 200Ω | 200Ω |
| IP Code | IP67 | IP67 | IP67 | IP67 |
| Cable specifications | ≤2.5mm2 | ≤2.5mm2 | ≤2.0mm2 | ≤2.5+0.3mm2 |
