LP12 Insert the two pins of waterproof wire connectors

LP12 Insert the two pins of a formal female socket

LP-12-J08PP-01-001
Shell material: PBT high performance engineering plastic.
Protection grade: IP68(2m/2h) Rated current: 2A Rated voltage :125VAC
Resistant voltage :1500VAC Flame retardant grade: UL94 V-0
Applicable wire gauge: 0.5mm²/20AWG
Operating temperature: -40-+85℃
Meet the certification standard: ETL/SAA/ROHS
Plug life: ≥1900 times The number of cores: 2P/3P/5P/6P/7P/8P
Quantity:
Contact Now

LP12 waterproof cable connector

The technical performance of the LP12 insert the 8pins of waterproof cable connector meets the international standards of  UL and TUV: the female terminal lock adopts pressing lock design, with secure locking, smooth plugging and repeated insertion and pulling times: the shell adopts high-performance PBT engineering plastic, ensuring stable electrical performance and excellent physical and chemical properties such as high temperature resistance and corrosion resistance. Meanwhile, the conductive parts can meet the temperature rise requirements of the product in high temperature environment. This series of product models,providing 2~8 cores for users to choose. Applicable standard: meet the standard of UL, TUV, etc

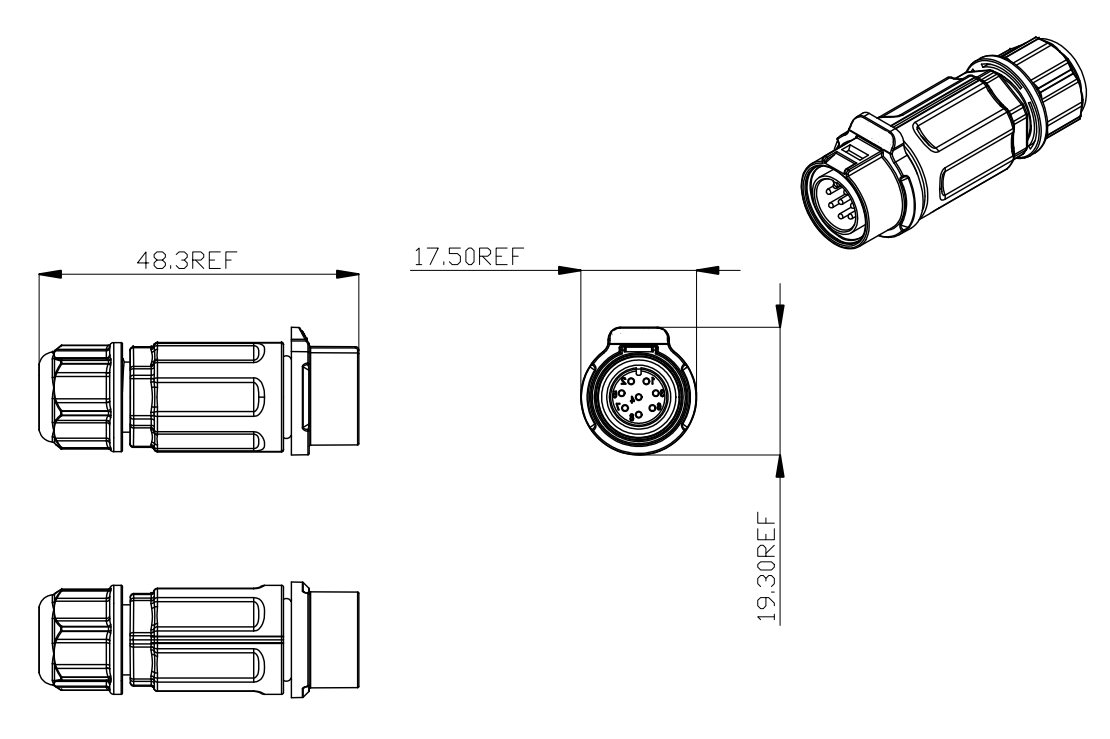

LP12 waterproof cable connector drawing

waterproof circular connector

LP12 Insert the 8 pins of waterproof cable connector Datasheet

Shell material: PBT high performance engineering plastic.Protection grade: IP68(2m/2h) Rated current: 2A  Rated voltage :125VAC
Resistant voltage :1500VACFlame retardant grade: UL94 V-0Applicable wire gauge: 0.5mm²/20AWG Operating temperature: -40-+85℃
Meet the certification standard: ETL/SAA/ROHS Plug life: ≥1900 times    The number of cores: 2P/3P/5P/6P/7P/8P

LP12 Insert the 8 pins of waterproof cable connector Application

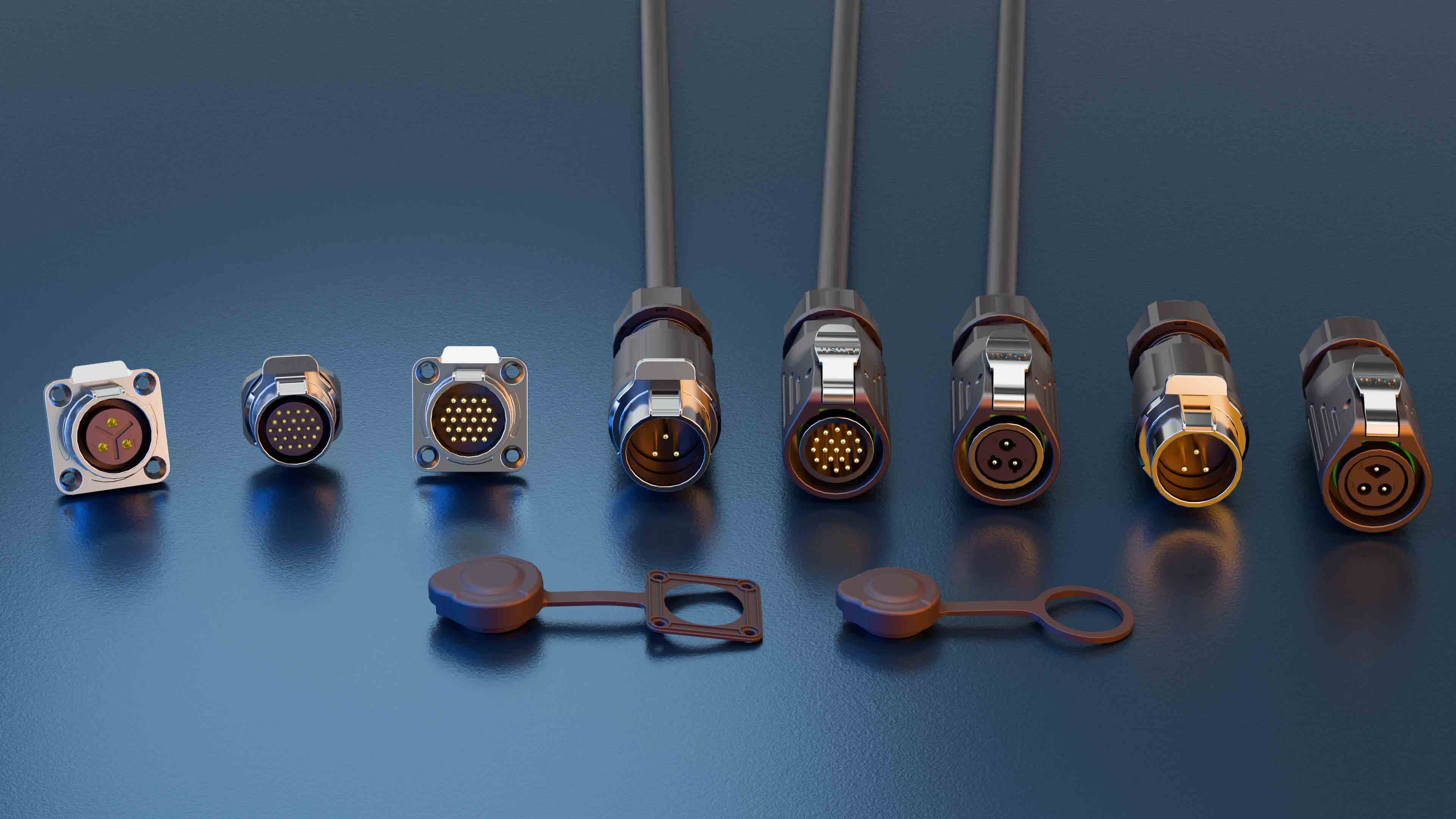

waterproof wire connectors

Why Choose us?
1. Our company have more than 8 years experience in the waterproof cable connector area
2. We have Professional waterproof circular connector experienced engineers, sales and overseas engineers.
3. We have automatically generate machines produce the waterproof cable connector, electronic wire and so on .
4. Our high productivity waterproof circular connector can make sure your quickly delivery time.
Our Advantages
1. Exact forging standard of knife edge and high hardness of surface make waterproof circular connector easy to drill.
2. Using the advanced waterproof circular connector technology to control the core hardness, avoiding rupture effectivity,
3. Quick locking the waterproof circular connector, and combining with the strength.
4. Save contruction time, improve working efficency.
5. Technology, professional manufacturing , quality assurance.

6.24Hrs online serice
