LP Series waterproof electrical connector

LP-12 plastic circular waterproof aviation plug connector

LP-12-J02PP-01-001
Shell material: PBT high performance engineering plastic.
Protection grade: IP68(2m/2h) Rated current: 2A Rated voltage :125VAC
Resistant voltage :1500VAC Flame retardant grade: UL94 V-0
Applicable wire gauge: 0.5mm²/20AWG
Operating temperature: -40-+85℃
Meet the certification standard: ETL/SAA/ROHS
Plug life: ≥1900 times The number of cores: 3p
Quantity:
Contact Now

LP Series waterproof electrical connector

The technical performance of the product LP Series waterproof electrical plug connectors meets the international standards of  UL and TUV: the female terminal lock adopts pressing lock design, with secure locking, smooth plugging and repeated insertion and pulling times: the shell adopts high-performance PBT engineering plastic, ensuring stable electrical performance and excellent physical and chemical properties such as high temperature resistance and corrosion resistance. Meanwhile, the conductive parts can meet the temperature rise requirements of the product in high temperature environment. This series of product models,providing 2~8 cores for users to choose. Applicable standard: meet the standard of UL, TUV, etc

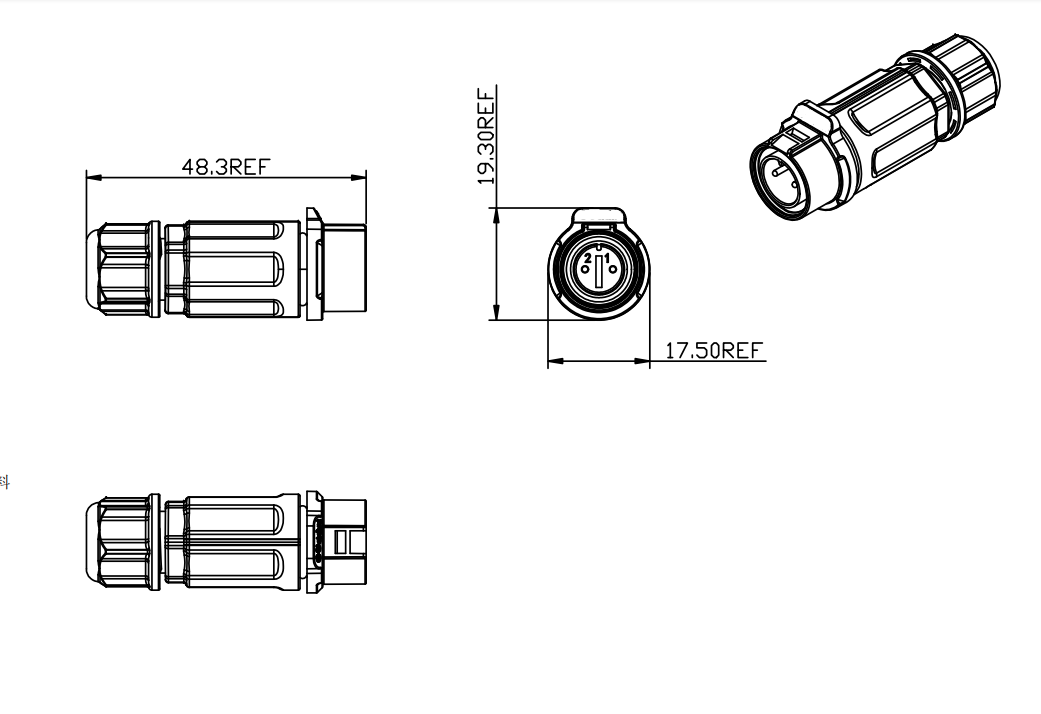

LP Series waterproof electrical connector drawing

LP Series waterproof electrical connector

LP Series waterproof electrical connector Datasheet

Shell material: PBT high performance engineering plastic.Protection grade: IP68(2m/2h) Rated current: 2A  Rated voltage :125VAC
Resistant voltage :1500VACFlame retardant grade: UL94 V-0Applicable wire gauge: 0.5mm²/20AWG Operating temperature: -40-+85℃
Meet the certification standard: ETL/SAA/ROHS Plug life: ≥1900 times    The number of cores: 2P/3P/5P/6P/7P/8P

LP Series waterproof electrical connector Application

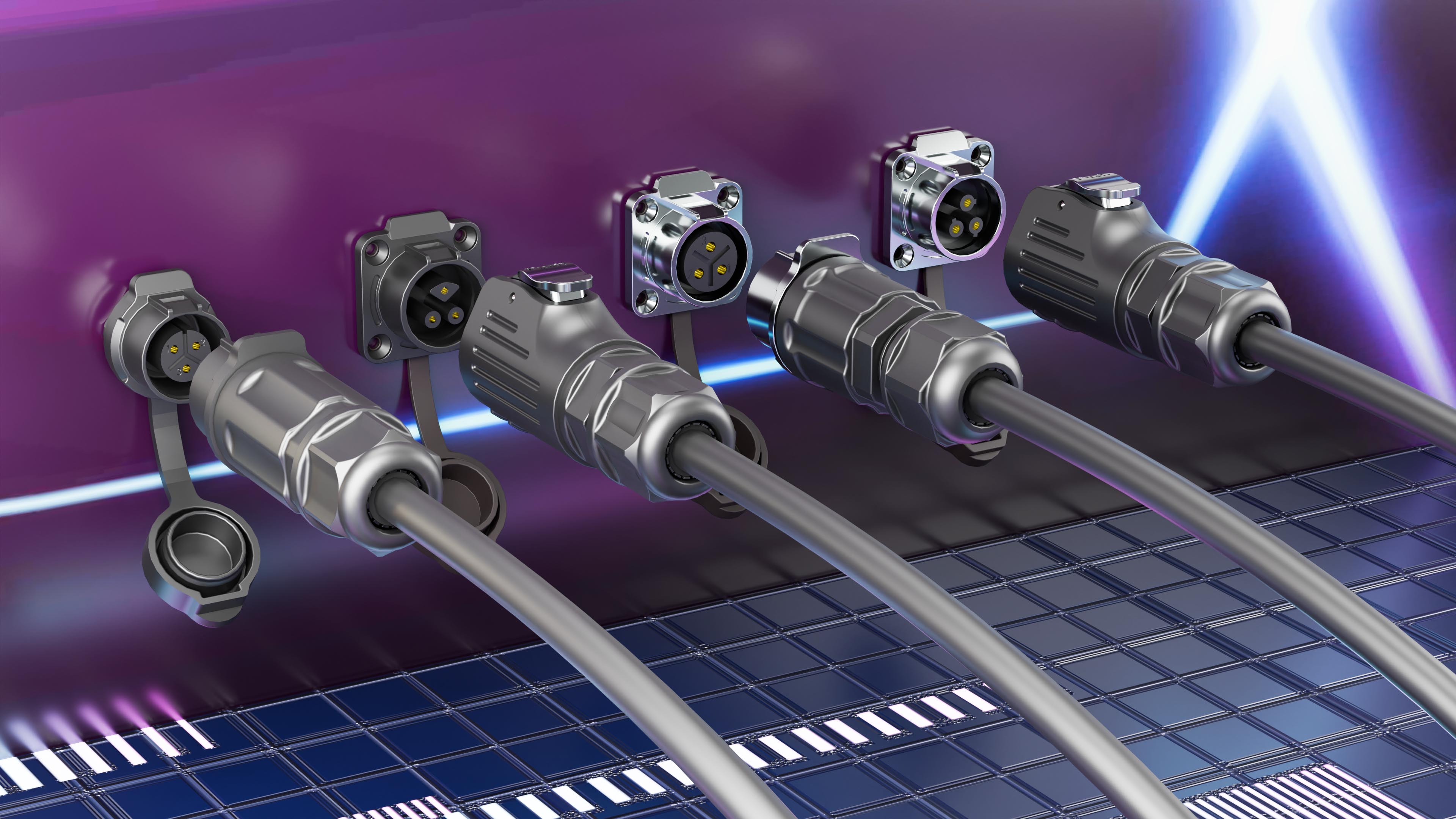

LP Series waterproof electrical plug connectors

Why Choose us?
1. Our company have more than 8 years experience in the LP Series waterproof electrical connector area
2. We have Professional experienced engineers, sales and overseas engineers.
3. We have automatically generate machines produce the LP Series waterproof electrical connector, electronic wire and so on .
4. Our high productivity can make sure your quickly delivery time.
Our Advantages
1. Exact forging standard of knife edge and high hardness of surface make LP Series waterproof electrical connector easy to drill.
2. Using the advanced technology to control the core hardness, avoiding rupture effectivity,
3. Quick locking LP Series waterproof electrical plug connectors, and combining with the strength.
4. Save contruction time, improve working efficency.
5. Technology, professional manufacturing , quality assurance.

6.24Hrs online serice
