M12 self-locking butt type waterproof connector

CB-P12-MDF11

* M12 self-locking butt type waterproof connector
* Molded with Cable
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5/2+3/6/8pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 8A
* Cable Jacket OD: 4-8mm²
* Wire Installation: Assembly type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

Quantity:

Contact Now

M12 self-locking butt type waterproof connector Speification

Our M12 self-locking butt type waterproof connectors for mc cable is designed with high-quality materials to provide reliable and long-lasting connections. This connector provides excellent waterproof and dustproof protection for your electrical connections, ensuring that they remain safe and secure in a variety of environments. With a self-locking design, this connectors for mc cable eliminates the need for additional tools or accessories to secure the connection. It is perfect for use in a variety of applications, including automotive, marine, and outdoor electronics. When you need a reliable and durable waterproof connector, our M12 self-locking butt type waterproof connectors for mc cable is the perfect choice.

M12 self-locking butt type waterproof connectors for mc cable Datasheet

Pins number	2Pins	3Pins	4Pins	5Pins	2+3Pins	6Pins	2+4Pins	8Pins
Rated voltage	250V	250V	250V	220V	125V	125V	125V	125V
Rated current	8A	8A	5A	5A	8A+3A	5A	8A+3A	5A
DC 2mA60S Insulation voltage	3KV	3KV	1KV	1KV	1KV	1KV	1KV	1KV
DC500V Insulation resistance	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ
IP Code	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Cable specifications	≤1.0mm2	≤1.0mm2	≤0.75mm2	≤0.5mm2	≤1+0.3mm2	≤0.2mm2	≤1+0.3mm2	≤0.2mm2
Molding cable diameter	4-8mm2	4-8mm2	4-8mm2	4-8mm2	4-8mm2	4-8mm2	4-8mm2	4-8mm2

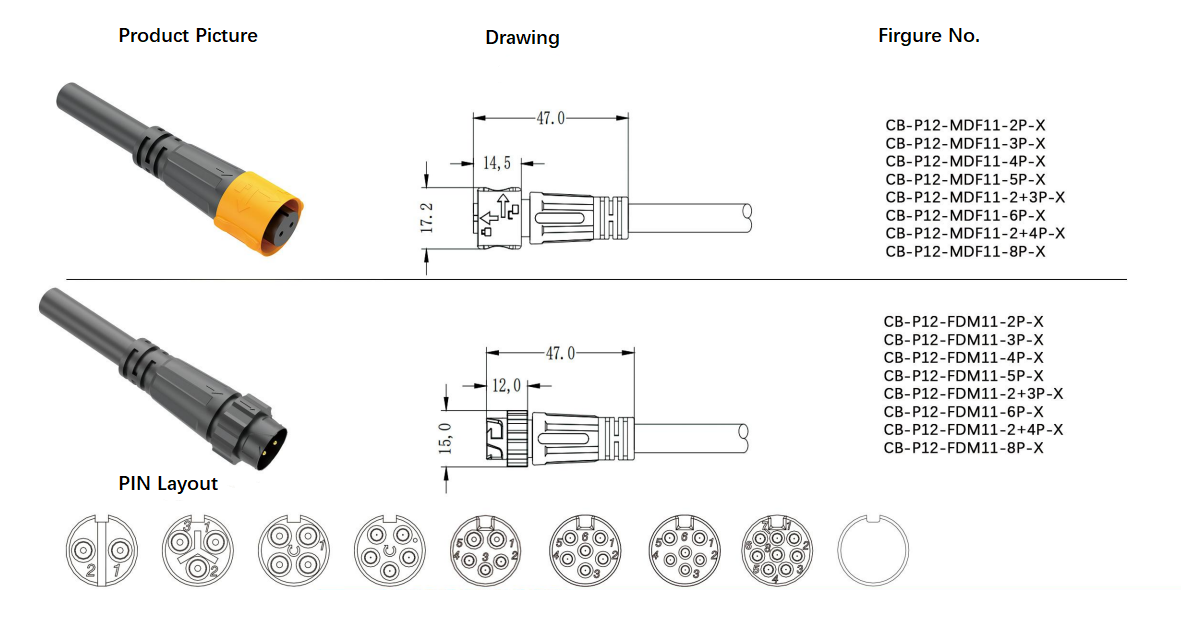

M12 self-locking butt type waterproof connectors for mc cable Drawing
