M12 threaded butt type waterproof connector

CB-M12-MDF01

* M12 threaded butt type waterproof connector
* Molded with Cable
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5/2+3/6/8pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 100V
* Rated Current: 8A
* Cable Jacket OD: 4-8mm²
* Wire Installation: Assembly type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

Quantity:

Contact Now

M12 threaded butt type waterproof connector

This is M12 threaded butt type female connector plug , which is waterproof rating IP67. In the outdoor typical applications, the female connector plug might be exposed to the rain, underground water, dust and other harsh environments. So that the waterproof electric wire connectors with favorable waterproof rating are well to deal with these aggressive environments. This M12 threaded butt type female connector plug are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male connector mating with female connector. In this way, the female connector plug will be favorable waterproof.

M12 threaded butt type female connector plug datasheet

Pins number	2Pins	3Pins	4Pins	5Pins	2+3Pins	6Pins	8Pins
Rated voltage	100V	100V	80V	80V	80V	80V	80V
Rated current	8A	8A	8A	8A	8A+3A	3A	3A
DC 2mA60S Insulation voltage	3KV	3KV	1KV	1KV	1KV	1KV	1KV
DC500V Insulation resistance	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ
IP Code	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Cable specifications	≤1.0mm2	≤1.0mm2	≤0.75mm2	≤0.5mm2	≤1+0.3mm2	≤0.2mm2	≤0.2mm2
Molding cable diameter	4-8mm2	4-8mm2	4-8mm2	4-8mm2	4-8mm2	4-8mm2	4-8mm2

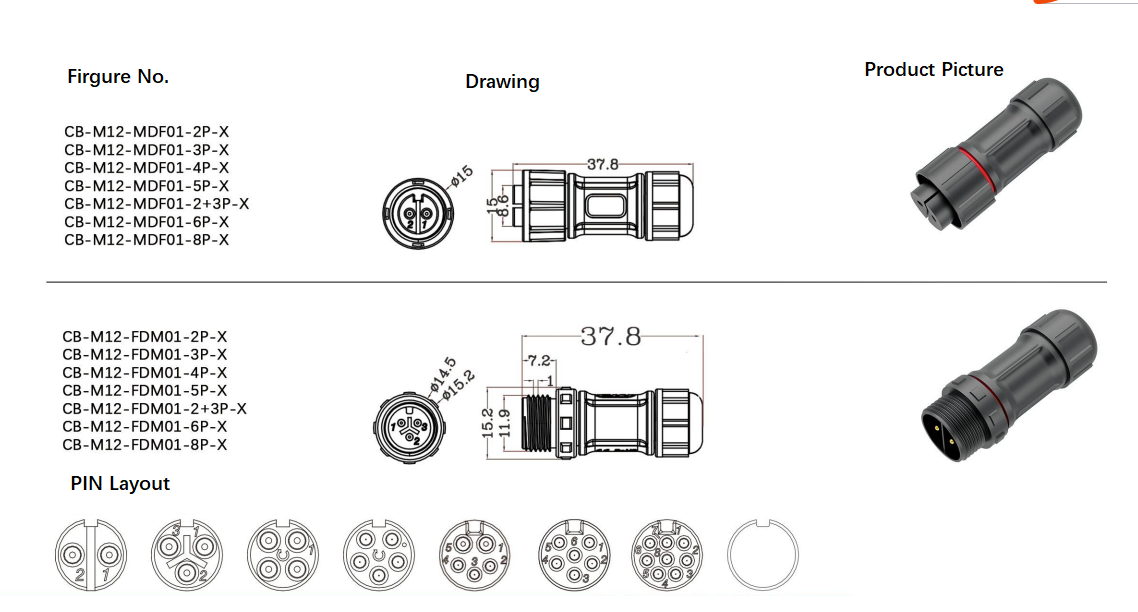

M12 threaded butt type waterproof connector Drawing
