M12 threaded butt type waterproof connector panel type
CB-M12-FFM01/CB-M12-FFF01
* M12 threaded butt type waterproof quick connect electrical connectors
* Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/2+3/6/8pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 100V
* Rated Current: 8A
* Wire Installation: Assembly type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
* Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/2+3/6/8pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 100V
* Rated Current: 8A
* Wire Installation: Assembly type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
Quantity:
M12 threaded butt type waterproof connector panel type
The M12 threaded butt type waterproof quick connect electrical connectors panel type is designed for use in industrial and outdoor applications where reliable and robust connectivity is required. With its waterproof design, it can withstand exposure to water and other harsh elements, making it ideal for use in marine environments or areas with high humidity. The M12 threaded butt quick connect electrical connectors ensures an easy and secure installation, ensuring that connections can be quickly and easily made without the need for specialized tools or expertise. This quick connect electrical connectors is suitable for a wide range of applications, including motor control systems, automation equipment, sensors, and many others. With high-quality construction and materials, this M12 threaded butt type waterproof quick connect electrical connectors is built to last and can provide years of reliable service.
M12 threaded butt type waterproof quick connect electrical connectors datasheet
| Pins number | 2Pins | 3Pins | 4Pins | 5Pins | 2+3Pins | 6Pins | 8Pins |
| Rated voltage | 100V | 100V | 80V | 80V | 80V | 80V | 80V |
| Rated current | 8A | 8A | 8A | 8A | 8A+3A | 3A | 3A |
| DC 2mA60S Insulation voltage | 3KV | 3KV | 1KV | 1KV | 1KV | 1KV | 1KV |
| DC500V Insulation resistance | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ |
| IP Code | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Cable specifications | ≤1.0mm2 | ≤1.0mm2 | ≤0.75mm2 | ≤0.5mm2 | ≤1+0.3mm2 | ≤0.2mm2 | ≤0.2mm2 |

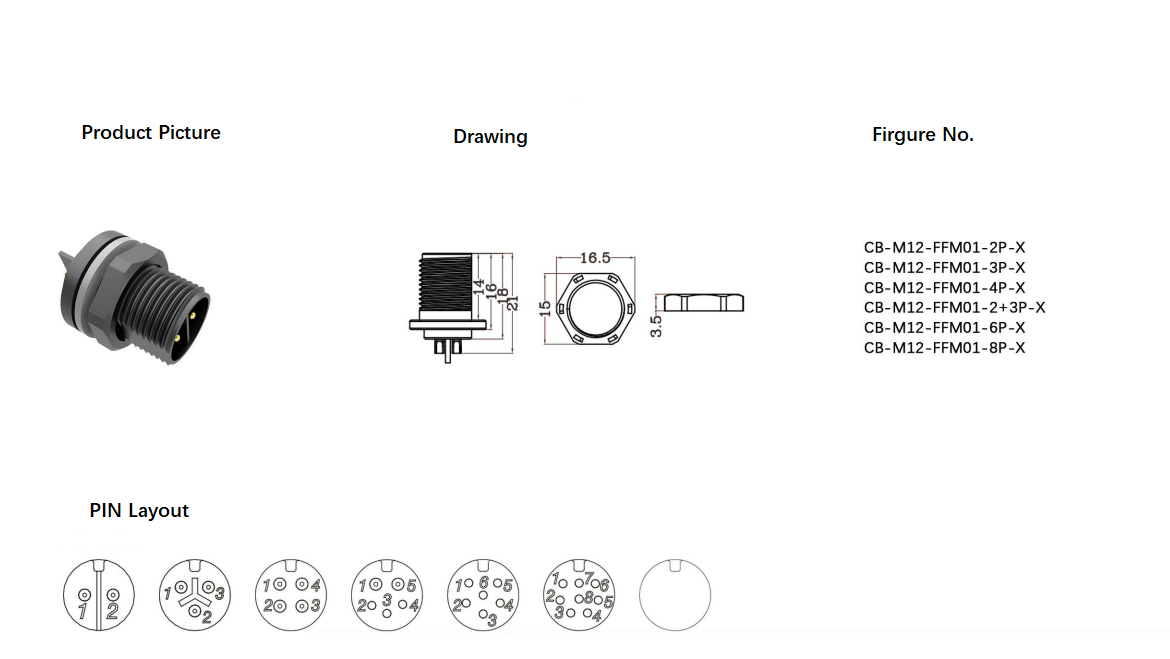

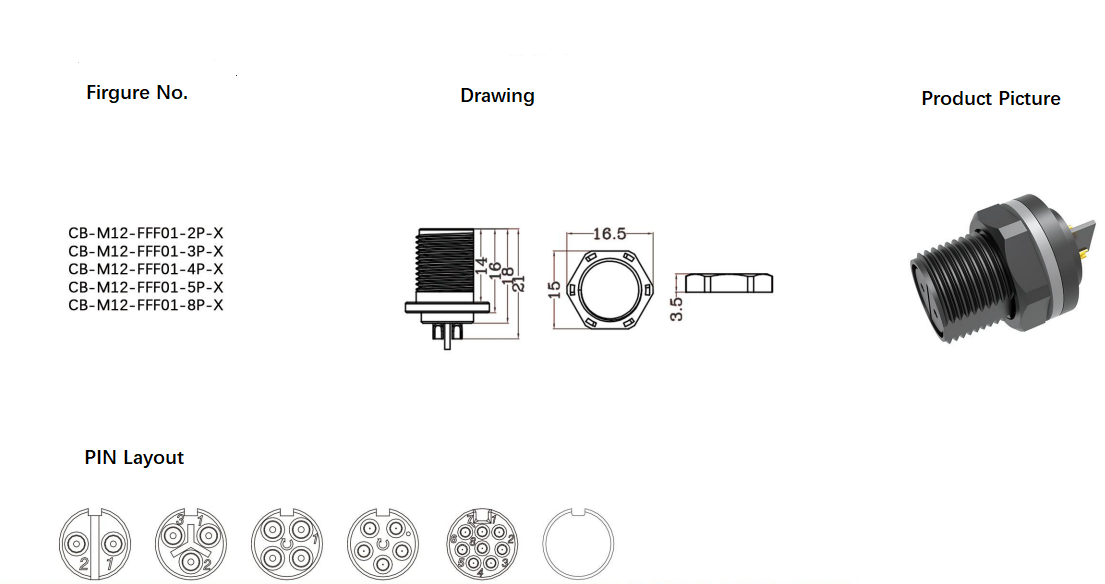

M12 threaded butt type waterproof connector panel type Drawing
