P12 self-locking waterproof connector for docking
CB-P12-FFM01
* P12 self-locking waterproof connector for docking
* Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5/2+3/6/2+4/8pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 250V
* Rated Current: 8A
* Cable Jacket OD: 4-8mm²
* Wire Installation: Panel type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
* Panel Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5/2+3/6/2+4/8pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 250V
* Rated Current: 8A
* Cable Jacket OD: 4-8mm²
* Wire Installation: Panel type
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
Quantity:
P12 self-locking waterproof connector for docking
The P12 self-locking Self locking waterproof electric wire connectors for docking offers many advantages, such as its ability to withstand harsh environments, providing users with reliable and secure docking. Its compact size makes it ideal for a wide range of applications, without compromising on durability. This Self locking waterproof electric wire connectors can be used in marine environments, industrial automation, renewable energy, and many other fields that require reliable and rugged connector solutions. Some of the benefits of this connector over other similar products include its waterproof and dustproof design, robust construction, and easy installation. With the P12 self-locking Self locking waterproof electric wire connectors for docking, users can be assured that their docking needs are being met with the highest level of quality and functionality available.
P12 self-locking waterproof Self locking waterproof electric wire connectors for docking datasheet
| Pins number | 2Pins | 3Pins | 4Pins | 5Pins | 2+3Pins | 6Pins | 2+4Pins | 8Pins |
| Rated voltage | 250V | 250V | 250V | 220V | 125V | 125V | 125V | 125V |
| Rated current | 8A | 8A | 5A | 5A | 8A+3A | 5A | 8A+3A | 5A |
| DC 2mA60S Insulation voltage | 3KV | 3KV | 1KV | 1KV | 1KV | 1KV | 1KV | 1KV |
| DC500V Insulation resistance | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ |
| IP Code | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Cable specifications | ≤1.0mm2 | ≤1.0mm2 | ≤0.75mm2 | ≤0.5mm2 | ≤1+0.3mm2 | ≤0.2mm2 | ≤1+0.3mm2 | ≤0.2mm2 |

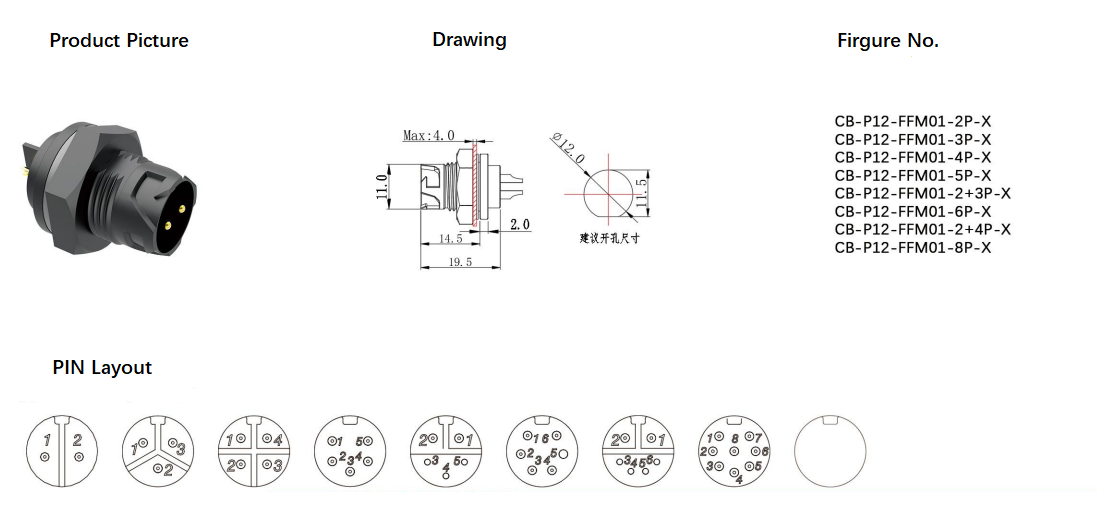

P12 self-locking waterproof Self locking waterproof electric wire connectors for docking Drawing
