M25 threaded butt butt waterproof connector
* Molded With Cable
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/5 pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 300V
* Rated Current: 30A
* Cable Jacket OD: 6-14mm
* Wire Installation: Molded with Cable
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
M25 threaded butt butt waterproof connector
This is led light cable connector , which is waterproof rating IP67. In the outdoor typical applications, the M25 threaded butt led light cable connector might be exposed to the rain, underground water, dust and other harsh environments. So that the waterproof electric wire connectors with favorable waterproof rating are well to deal with these aggressive environments. This electric wire connectors are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male connector mating with female connector. In this way, the led light cable connector will be favorable waterproof.

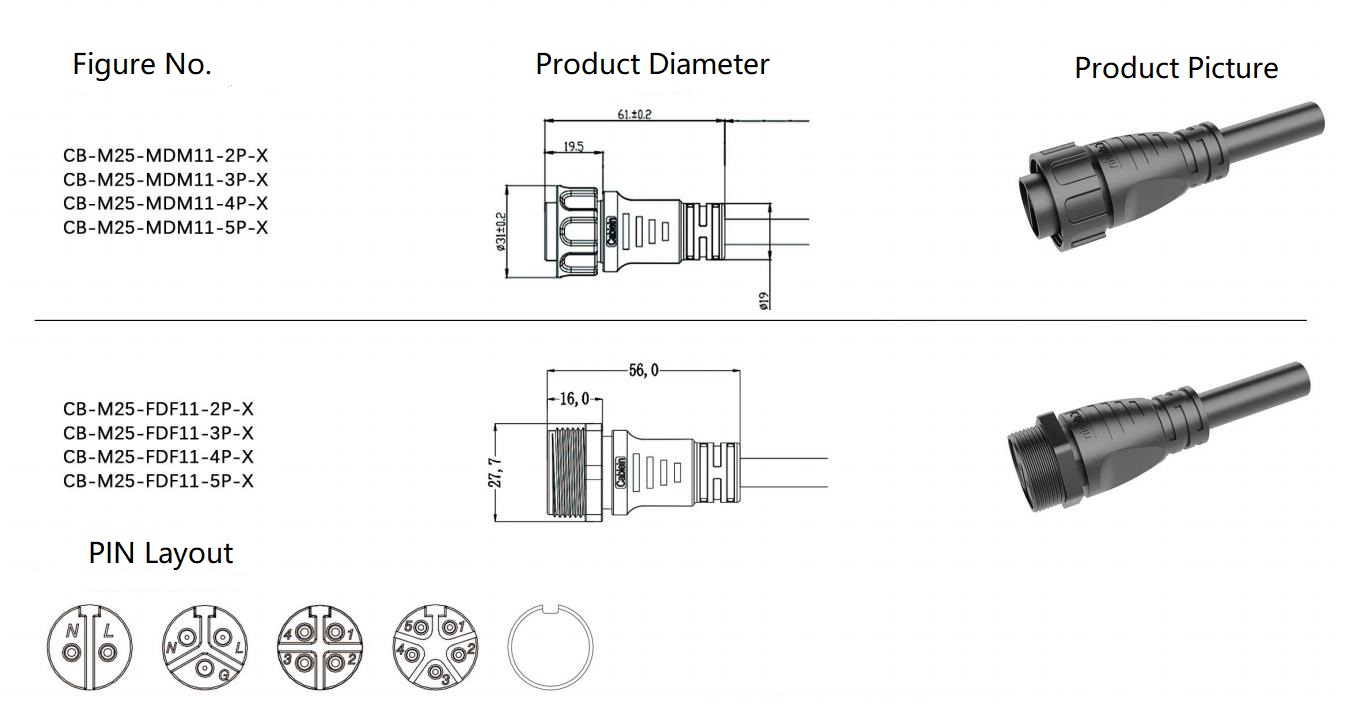

M25 threaded butt led light cable connector Parameter Description
| Pin number | 2Pins | 3Pins | 4Pins | 5Pins |
| Rated Voltage | 500V | 500V | 500V | 500V |
| Rated current | 30A | 30A | 30A | 30A |
| DC 2mA60S Insulation voltage | 3KV | 3KV | 3KV | 3KV |
| DC 500V Insulation resistance | 500MΩ | 500MΩ | 500MΩ | 500MΩ |
| IP-CODE | IP67 | IP67 | IP67 | IP67 |
| Cable specifications | ≤4.0mm2 | ≤4.0mm2 | ≤4.0mm2 | ≤4.0mm2 |
| Molding cable diameter | 6-14mm2 | 6-14mm2 | 6-14mm2 | 6-14mm2 |
