Y Type Waterproof Connector-Y10
* Molded With Cable Y Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: according to wire
* Rated Current: according to wire
* Wire Installation: Assembly type
* Certificate: ROHS, UL94V-0, UV Passed
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

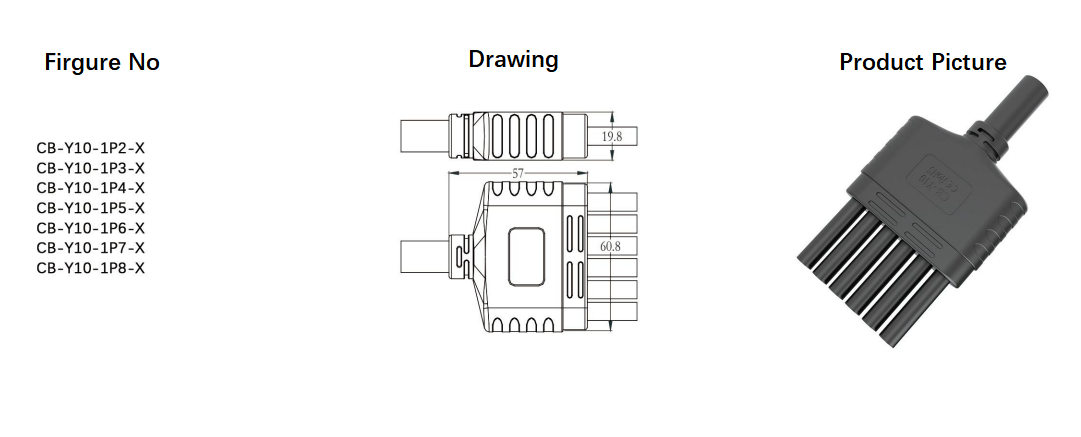

Y Type Waterproof Connector-Y10
This is Y Type waterproof 3 way wire connector , which is waterproof rating IP67. In the outdoor typical applications, the waterproof 3 way wire connector might be exposed to the rain, underground water, dust and other harsh environments. So that the waterproof electric wire connectors with favorable waterproof rating are well to deal with these aggressive environments. This waterproof 3 way wire connector are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male connector mating with female connector. In this way, the Y Type waterproof 3 way wire connector will be favorable waterproof.
Y Type waterproof 3 way wire connector -Y10 Parameter Description
| Main cable diameter | 6-14mm |
| Branch cable dimmable | 3-12mm |
| Rated Voltage | according to the electrical wire Rated Voltage |
| Rated current | according to the electrical wire Rated Current |
| DC500V Insulatin resistance | 200MΩ |
| IP-CODE | IP67 |
| Elecrical connection | Can customized |
| Attended connection | Solder wire or solder PCB board |
