M16-FFM11-2P Waterproof Connector
029
This waterproof connector is perfect for outdoor and marine environments, with exceptional durability and resistance to moisture. It is easy to use and install, making it a great solution for all your electrical needs.
Quantity:

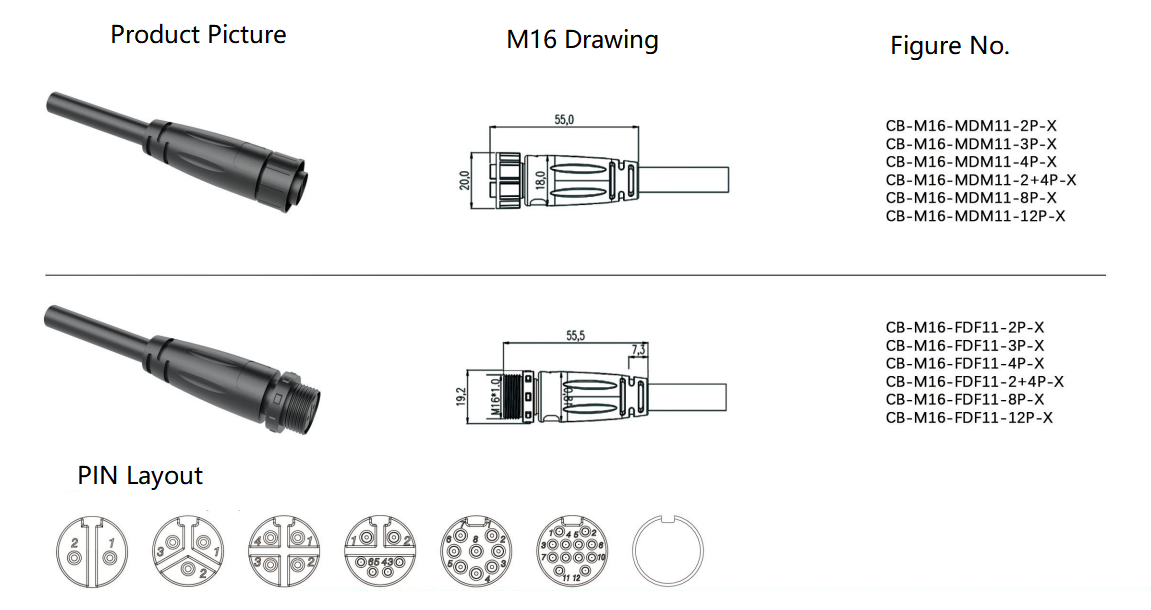

M16-FFM11-2P Waterproof Connector Specification Details
The M16-FFM11-2P ip67 connectors is designed for use in harsh and demanding environments. It is completely waterproof, with a high level of resistance to saltwater, UV exposure, and other sources of moisture. With ip67 connectors rugged construction and reliable performance, this connector is ideal for use in marine environments, outdoor lighting systems, and any other application where exposure to the elements is a concern. This ip67 connectors features a two-pin design for easy installation and use, and is compatible with a wide range of cables and wiring systems. Its compact size and streamlined shape make it easy to install in tight spaces, and its high-quality materials ensure reliable performance even under the most demanding conditions. Overall, the M16-FFM11-2P ip67 connectors provides exceptional durability and performance in any environment. Whether you're building a marine electrical system, installing outdoor lighting, or working on any other electrical project, this ip67 connectors is the perfect solution for all your needs.
M16-FFM11-2P ip67 connectors Datasheet
| Pins number | 2pins | 3pins | 4pins | 2+4pins | 8pins | 12pins |
| Rated Voltage | 500V | 500V | 500V | 500V | 100V | 100V |
| Rated Current | 15A | 15A | 8A | 8A+3A | 3A | 3A |
| DC 2mA60S Insulation Voltage | 3KV | 3KV | 3KV | 1KV | 1KV | 1KV |
| Insulation resistance | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ | 200MΩ |
| IP Code | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Cable specification | ≤1.5mm2 | ≤1.5mm2 | ≤1.5mm2 | ≤0.75mm2 | ≤1.0+0.3mm2 | ≤0.5mm2 |
| Molding cable diameter | 2.5-9.2mm2 | 2.5-9.2mm2 | 2.5-9.2mm2 | 2.5-9.2mm2 | 2.5-9.2mm2 | 2.5-9.2mm2 |
