M16 threaded butt type waterproof connector Male pin

CB-M16-MDM11
* M16 threaded butt type waterproof connector male pin
* Molded With Cable
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/2+4/8/12 pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 15A
* Cable Jacket OD: 4.5-9.2mm
* Wire Installation: Molded with Cable
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
Quantity:
Contact Now

M16 threaded butt type waterproof connector Male pin

This is M16 threaded butt type male to female cable connector, which is waterproof rating IP67. In the outdoor typical applications, the male to female cable connector might be exposed to the rain, underground water, dust and other harsh environments. So that the M16 threaded butt type male to female cable connector Male pin with favorable waterproof rating are well to deal with these aggressive environments. This electric wire connectors are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male to female cable connector mating with female connector. In this way, the M16 threaded butt type waterproof connector Male pin will be favorable waterproof.

M16 threaded butt type male to female cable connector Male pin Parameter Description

Pins number2pins3pins4pins2+4pins8pins12pins
Rated Voltage500V500V500V500V100V100V
Rated Current15A15A8A8A+3A3A3A
DC 2mA60S Insulation Voltage3KV3KV3KV1KV1KV1KV
Insulation resistance200MΩ200MΩ200MΩ200MΩ200MΩ200MΩ
IP CodeIP67IP67IP67IP67IP67IP67
Cable specification≤1.5mm2≤1.5mm2≤1.5mm2≤0.75mm2≤1.0+0.3mm2≤0.5mm2
Molding cable diameter2.5-9.2mm22.5-9.2mm22.5-9.2mm22.5-9.2mm22.5-9.2mm22.5-9.2mm2

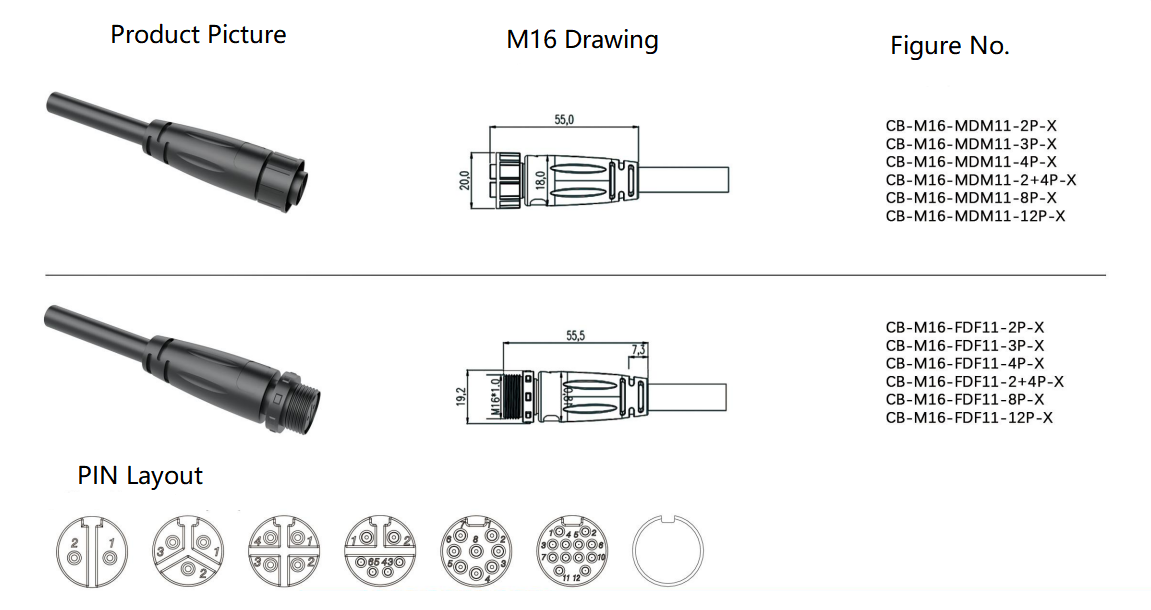

M16 waterproof male connector Drawing
