P16 self-locking docking waterproof connector female end

CB-P16-FDM11

* P16 self-locking 4 pin connector waterproof female end
* Molded With Cable
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Contacts: 2/3/4/8 pins
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: 500V
* Rated Current: 15A
* Cable Jacket OD: 4.5-9.2mm
* Wire Installation: Molded with Cable
* Certificate: ISO/CE/ROHS/PSE/ETL
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal

Quantity:

Contact Now

P16 self-locking docking waterproof connector female end

This is P16 threaded butt type 4 pin connector waterproof female pin , which is waterproof rating IP67. In the outdoor typical applications, the 4 pin connector waterproof might be exposed to the rain, underground water, dust and other harsh environments. So that the waterproof electric wire connectors with favorable waterproof rating are well to deal with these aggressive environments. This 4 pin connector waterproof are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male connector mating with female connector. In this way, the P16 self-locking docking 4 pin connector waterproof female end will be favorable waterproof.

P16 self-locking docking 4 pin connector waterproof end Datasheet

Pins number	2Pins	3Pins	4Pins	8Pins
Rated voltage	500V	500V	500V	110V
Rated current	15A	15A	15A	5A
DC 2mA60S Insulation voltage	3KV	3KV	1KV	1KV
DC500V Insulation resistance	500MΩ	500MΩ	500MΩ	200MΩ
IP Code	IP67	IP67	IP67	IP67
Cable specifications	≤1.5mm2	≤1.5mm2	≤1.5mm2	≤1.5mm2
Molding cable diameter	4.5-9.2mm2	4.5-9.2mm2	4.5-9.2mm2	4.5-9.2mm2

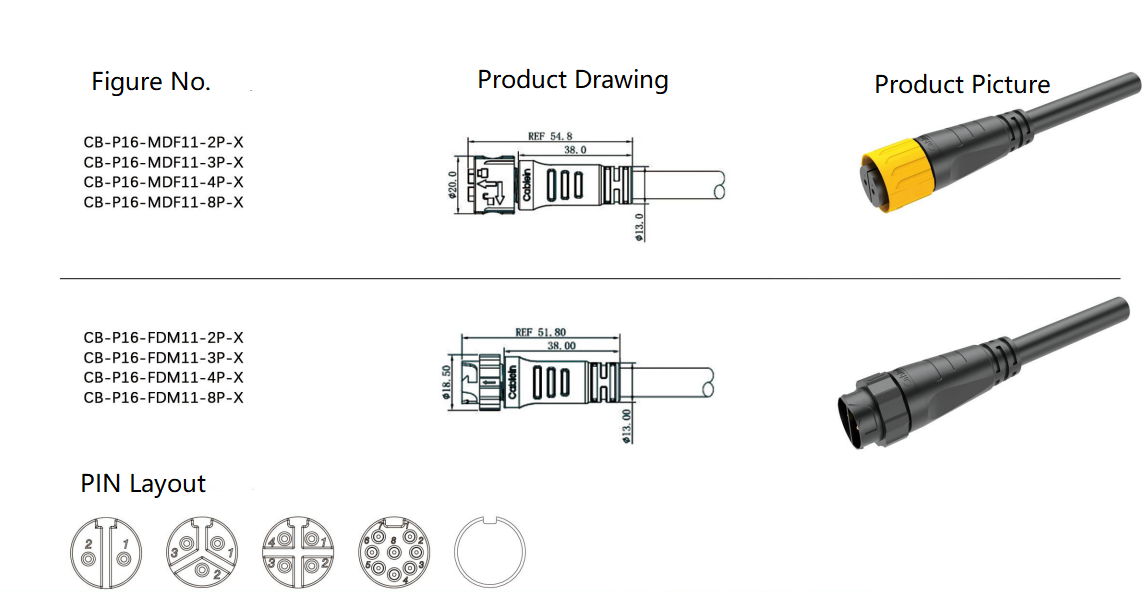

P16 self-locking docking waterproof connector female end Drawing
