T Type Waterproof Connector-T02
CB-T02
* T Type power connector waterproof T02
* Molded With Cable Y Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: according to wire
* Rated Current: according to wire
* Wire Installation: Assembly type
* Certificate: ROHS, UL94V-0, UV Passed
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
* Molded With Cable Y Type
* Insertion life:1000 times
* Operating temperature:-40℃-105℃
* Outdoor UV resistance: Pass
* Plastic: PA66 Nylon
* Metal: Gilded brass
* Voltage: according to wire
* Rated Current: according to wire
* Wire Installation: Assembly type
* Certificate: ROHS, UL94V-0, UV Passed
* Shipping Port: Shenzhen China
* Payment Terms: T/T bank, Paypal
Quantity:

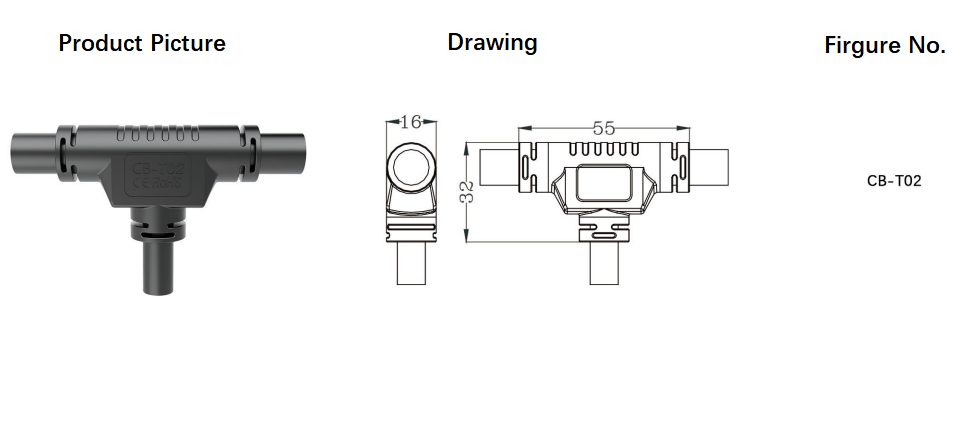

T Type Waterproof Connector-T02
This is T Type power connector waterproof , which is waterproof rating IP67. In the outdoor typical applications, the power connector waterproof might be exposed to the rain, underground water, dust and other harsh environments. So that the waterproof electric wire connectors with favorable waterproof rating are well to deal with these aggressive environments. This power connector waterproof are soldered on the connector core, and then injected with plastic waterproof material. Meanwhile, there is waterproof seal ring between the male connector mating with female connector. In this way, the connector will be favorable waterproof.
T Type power connector waterproof-T02 Parameter Description
| Main cable diameter | 7-11mm |
| Branch cable dimmable | 6-11mm |
| Rated Voltage | according to the electrical wire Rated Voltage |
| Rated current | according to the electrical wire Rated Current |
| DC500V Insulatin resistance | 200MΩ |
| IP-CODE | IP67 |
| Elecrical connection | Can customized |
| Attended connection | Solder wire or solder PCB board |
